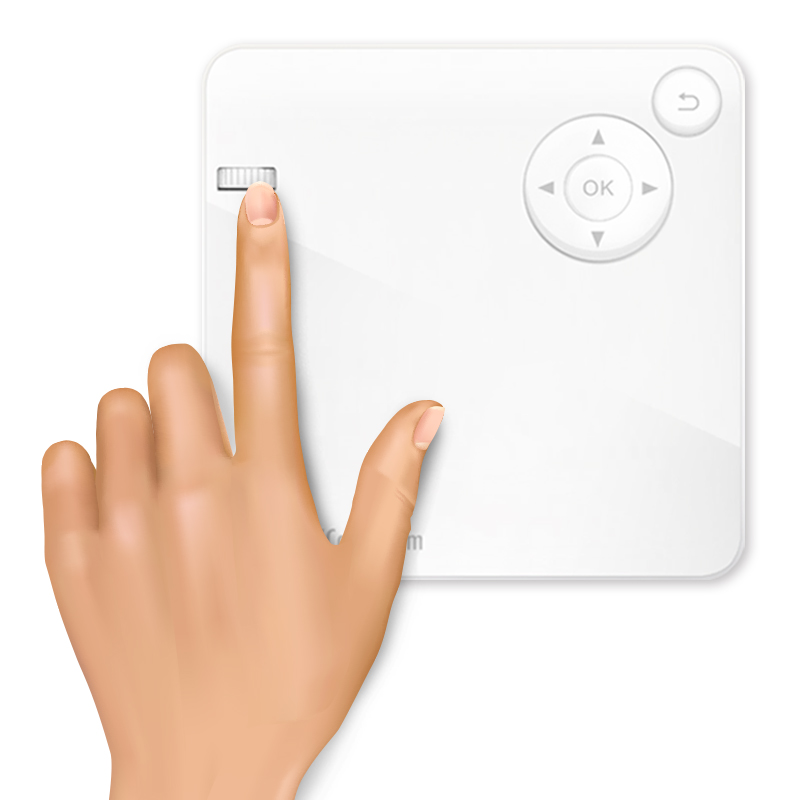

Please use the focus ring on the top of projector to sharpen the image.
Remote control doesn't work

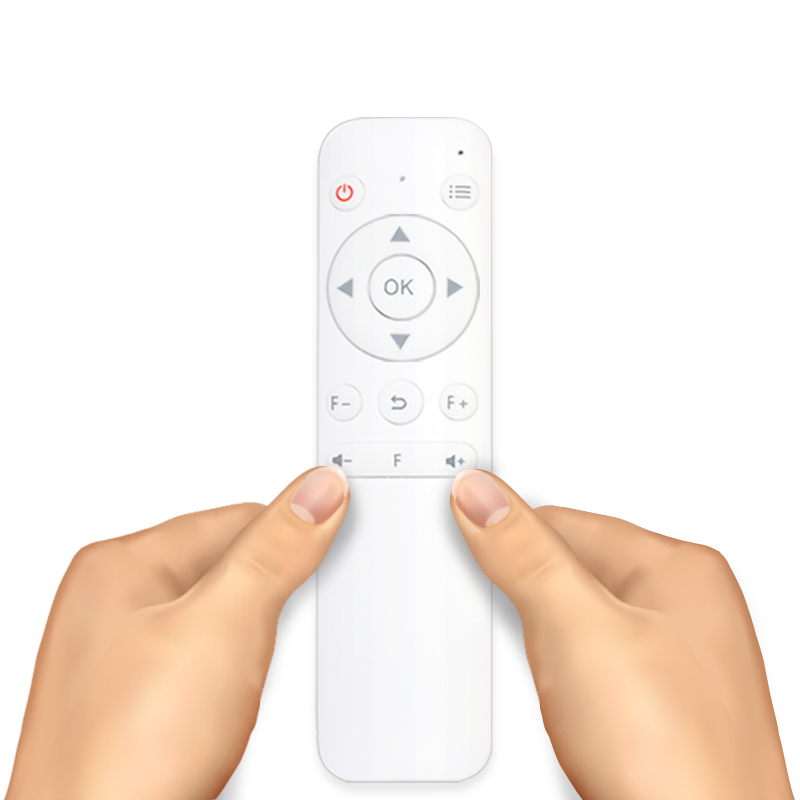

Please press and hold both Volume+ and Volume- buttons of the remote simutaneously while close to your projector.
Once the red LED starts flashing quickly, the remote is paired successfully with projector.
How to connect your smart device to the Beam mini projector in EZCast mode?
1. Connect your smart device to the Beam projector Wi-Fi by choosing the Beam's SSID in the Wi-Fi list of your device.
2. Launch the EZCast app > Click the arrow down icon on top-right corner > Search your dongle's SSID > Connect.
How to connect Beam projector to internet-enabled Wi-Fi network?
1. Connect your smart device to the Beam projector Wi-Fi by choosing the Beam's SSID in the Wi-Fi list of your device and enter the password nearby SSID.
2. Launch the EZCast app > Click the arrow down icon on top-right corner > Search your dongle's SSID > Connect.
3. Go back to app’s home page, click the hamburger icon on the top-left corner >Settings > Internet, then choose select the Wi-Fi network and enter the password of router.
How to upgrade the firmware of Beam projector?
Please connect your Beam projector to the internet, then go back to the projector home screen, and click Settings > Firmware upgrade (OTA mode) to upgrade the firmware to the latest vesion.
The image is not rectangular
If the image is not rectangular, please go to Advanced setting and follow the steps below:
Basic keystone: Open auto V. Keystone, and adjust the H. Keystone until the image is rectangular.
Advanced keystone: Turn off auto V. Keystone, and adjust the V. Keystone and H. Keystone until the image is rectangular.
If image is still not perfect, use 4 Corner Correction to adjust the corners individually
Auto image calibration doesn't make my image rectangular
If the image is not rectangular after auto image calibration, please go to Advanced setting/Keystone Calibration to calibrate the image again:
1. Turn off Auto V. Keystone.
2. Place projector on a level surface, then turn on Keystone Calibration (it would be active to calibrate, then turns itself off).
3. Turn on Auto V. Keystone again.
How can I reset the projector?
There are two ways to reset:
1.Go to Settings > Reset All to reset the projector.
2.While the projector is powered on, use a pin to click Reset button (inside the hole near the power button) to see the “Reset all settings” message. It will reset after a 5 second countdown.
What type of cable do I need for EZWire PC?
You need a cable with USB type A male on both ends to connect PC to Beam projector.
Can't read pdf/doc files in my device
Beam projector doesn't support pdf and doc files. Please open the files on your phone or laptop and screen mirror to the projector.
Can't read my USB flash drive.
Beam projector doesn't support USB drives larger than 256GB.
Do I need to purchase an EZCast 2 or EZCast 4K dongle to screen mirror from my phone to Beam mini projector?
The Beam mini projector has built-in screen mirroring over wire and Wi-Fi.
An external EZCast dongle is not required to screen mirror from your smart phones.
