About Mate1

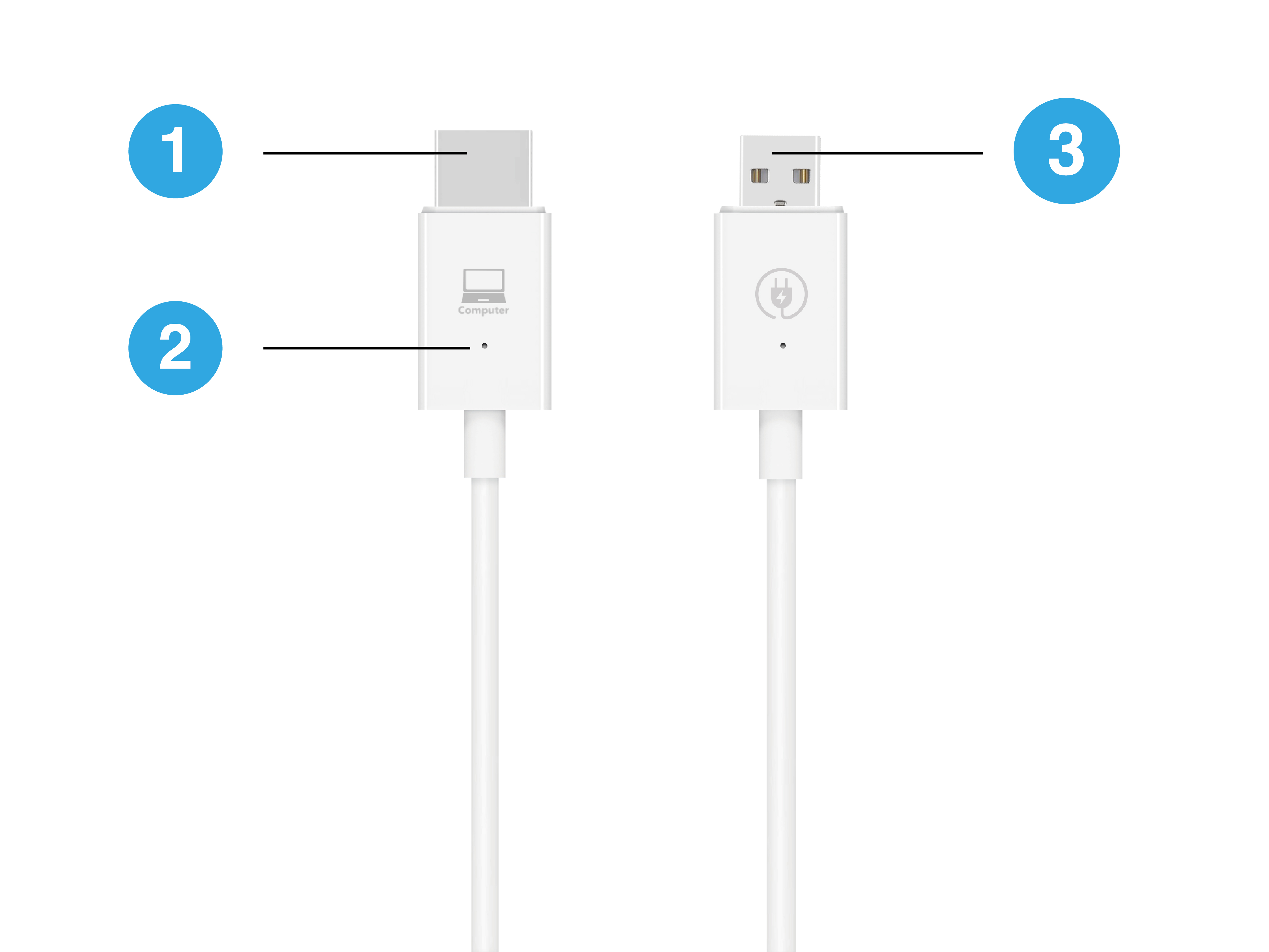

Transmitter (H-1)

Easily mirror whatever shows on your laptop or mobile screen, ideal for video-watching, game-play, and idea sharing.

1. HDMI
2. Pair/Reset
3. USB (power supply)

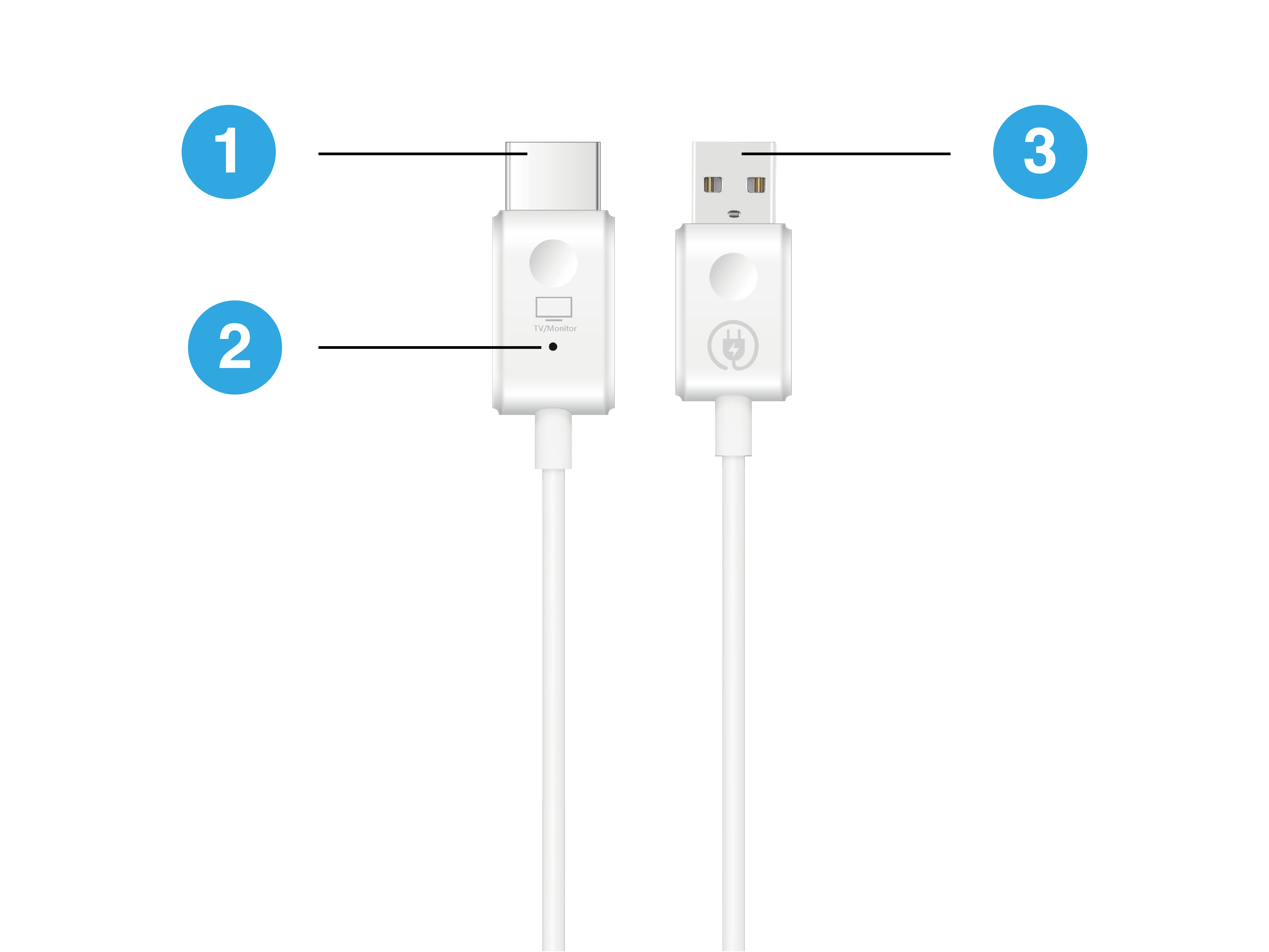

Receiver (R-1)

Display the contents passed from your transmitter on the big screen like HDTV or projector screen.

1. HDMI
2. Reset
3. USB (power supply)

About Mate2

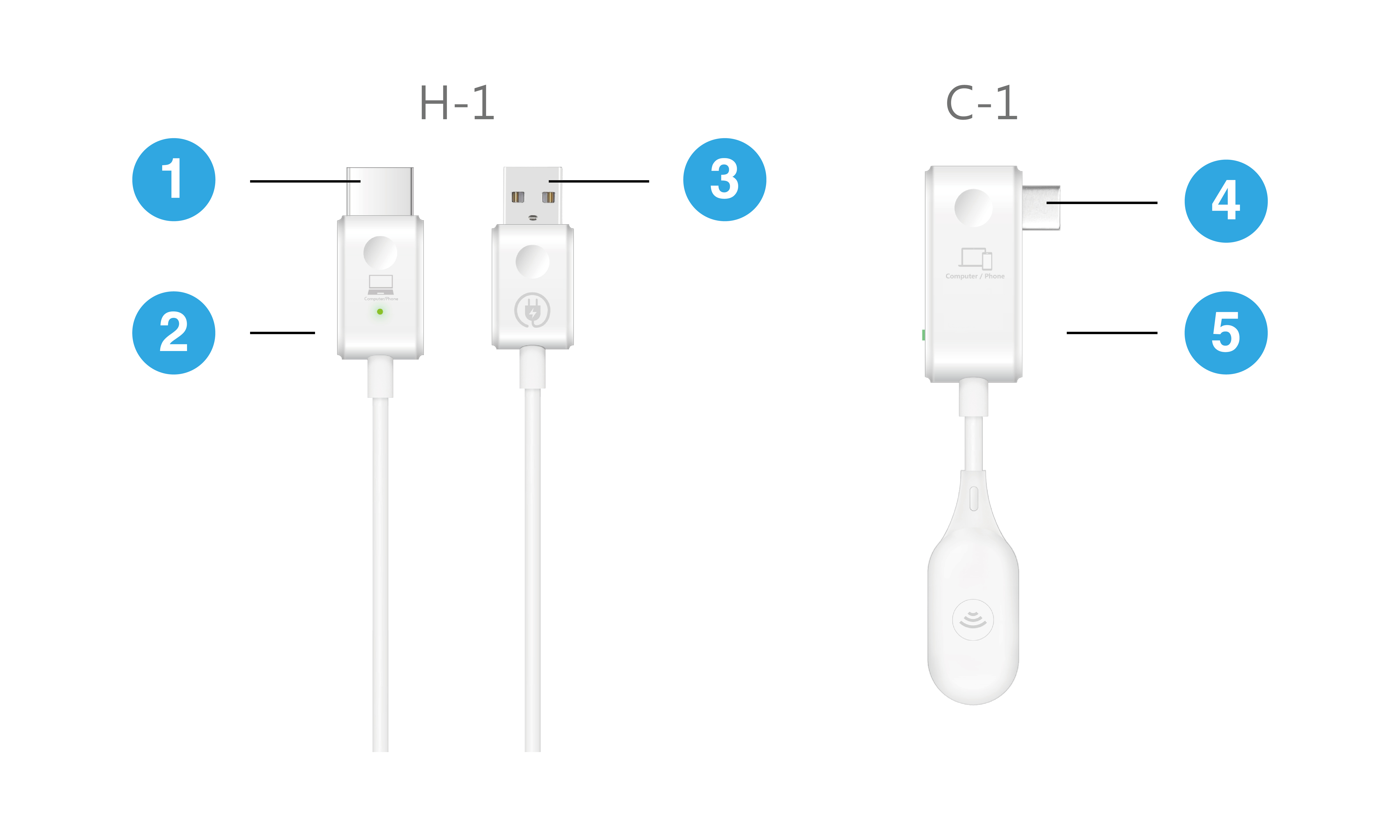

Transmitter (H-1、C-1)

1. HDMI
2. Pair/ Reset (located on the side)
3. USB (power supply)
4. Type-C
5. Pair/ Reset (located on the side)

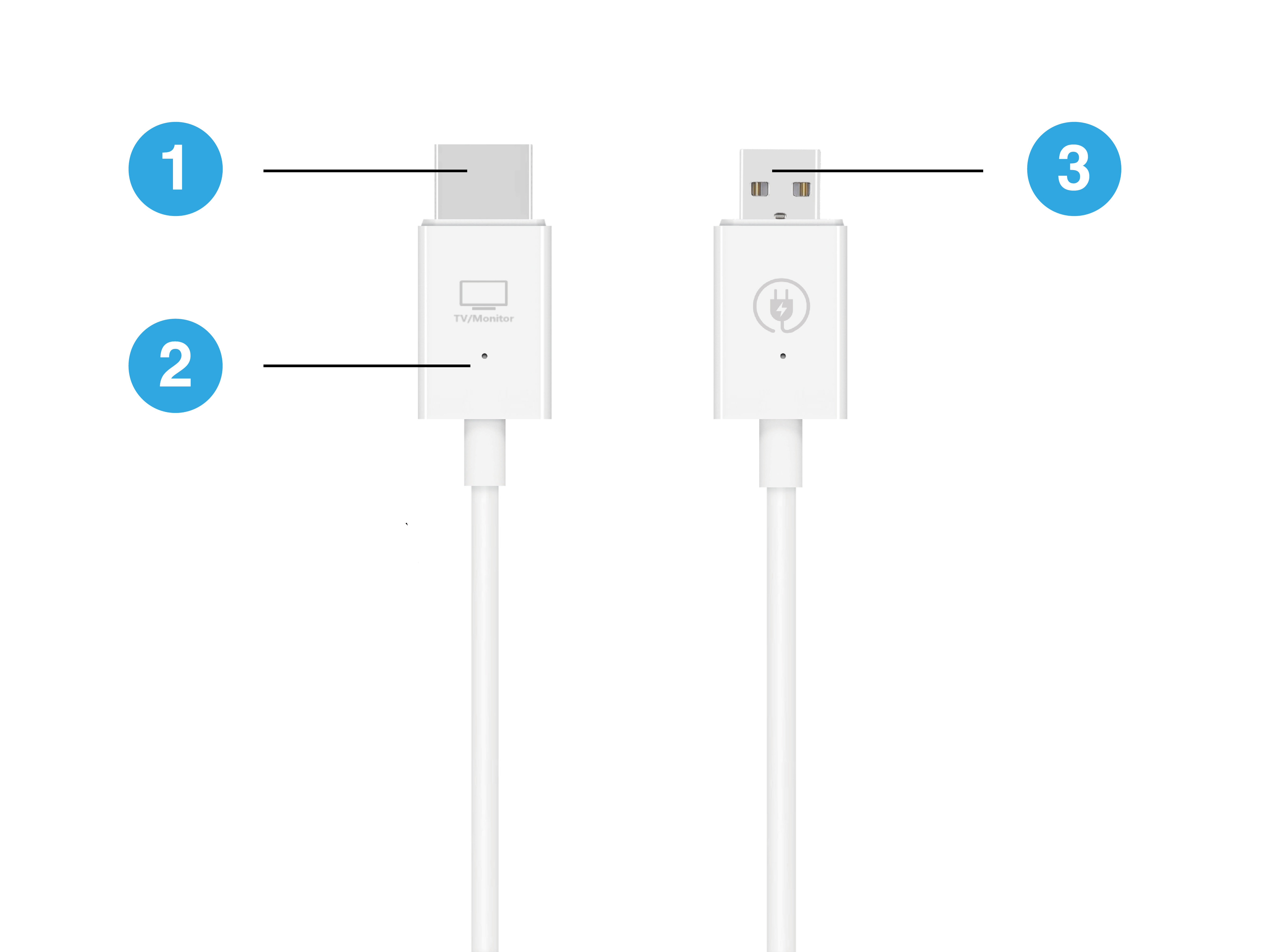

Receiver (R-1)

1. HDMI
2. Reset
3. USB (power supply)

About Mate4

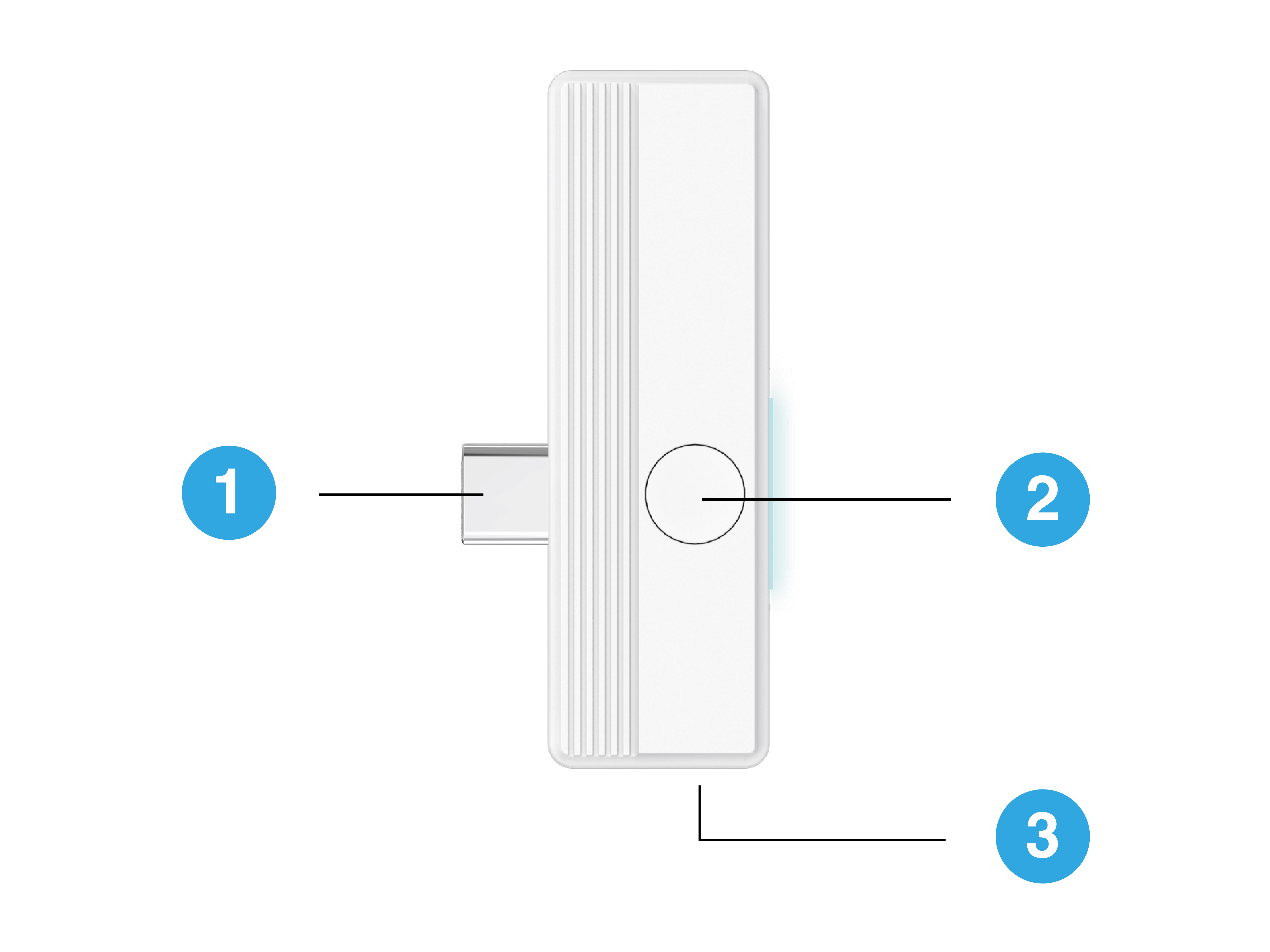

Transmitter (C-1)

1. Type-C
2. Mirror / Pair
3. Type-C charging port (optional)

Receiver (R-1)

1. HDMI
2. Reset
3. USB (power supply)

About Mate5

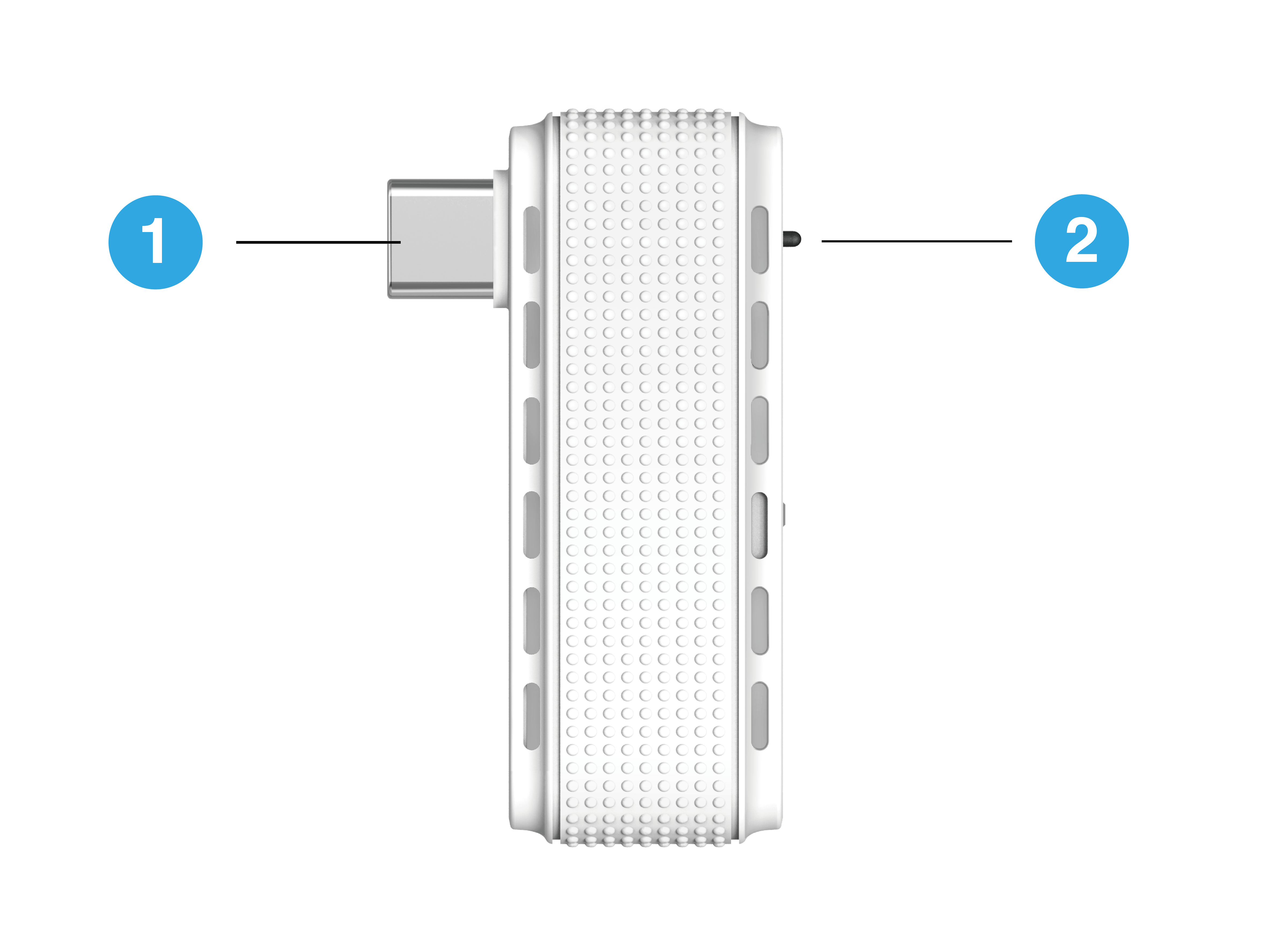

Transmitter (C-1)

1. Type-C
2. Mirror / Pair

Receiver (R-1)

1. HDMI
2. Reset
3. USB (power supply)

How to mirror

1. Install the receiver：Connect the receiver to the HDMI port on TV, and power on by an independent power 5V/1A adapter.

2. Plug and play：Connect the transmitter to the Type-C or HDMI port of your laptop or mobile, wait for a few seconds until the flashing light on the transmitter stops, and then the screen will automatically project.
*When using the Mate1 H-1 and Mate2 H-1 models of transmitters (with HDMI connector), please connect the USB connector to the laptop or use an independent power supply (5V/1A).

3. Stop and restart mirroring：Remove the transmitter to stop mirroring, and plug the transmitter to restart mirroring.
*When using the Mate4 C-1 and Mate45C-1 transmitter (Type-C connector), you can press the Mirror/Pairing button on the transmitter to stop or resume mirroring.
